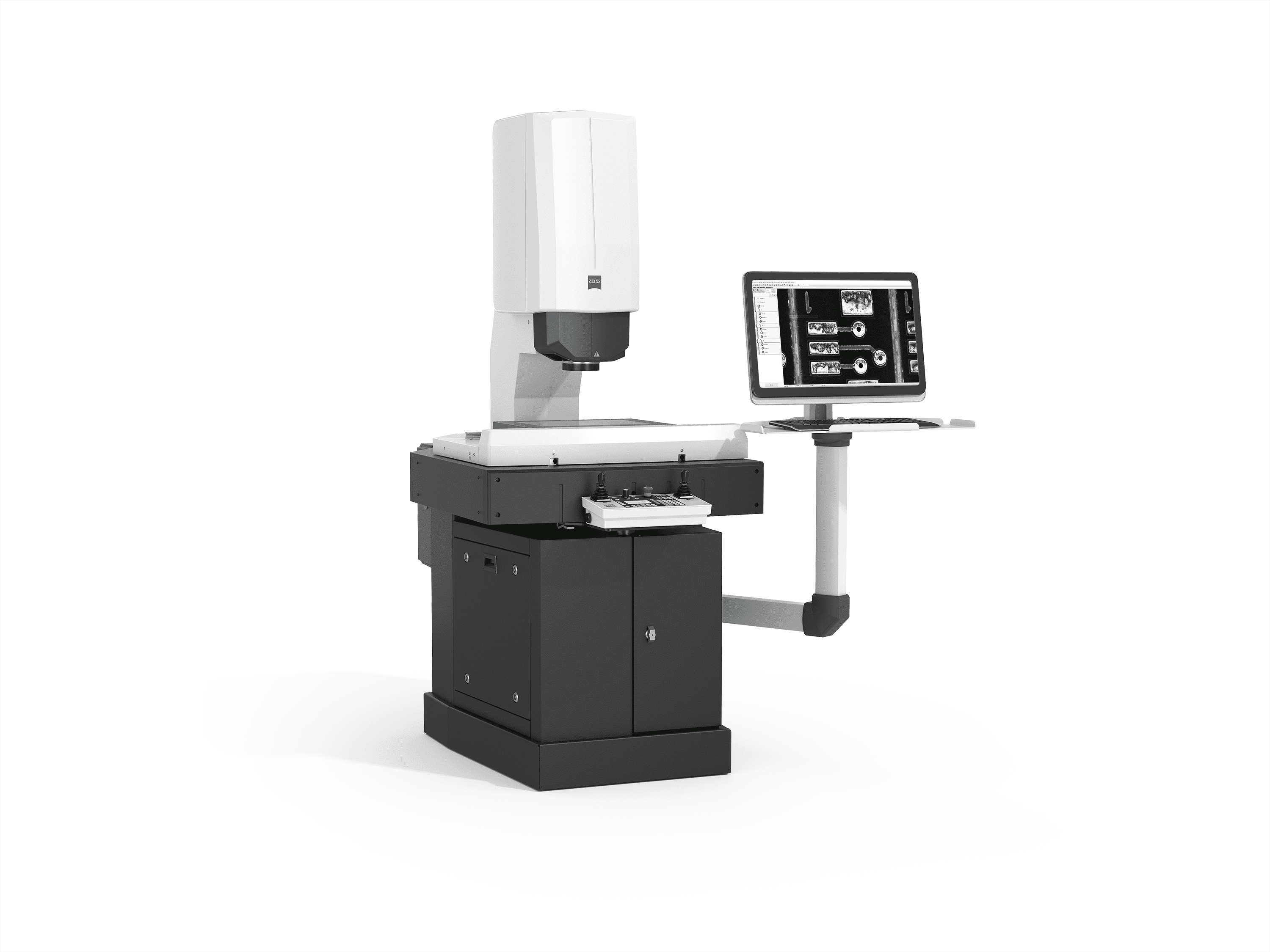

ZEISS O-Detect
Entering the world of optical metrology.
Ultra high-speed Non-Contact 3D CNC measurement
Measuring volume 300mm(w) x 200mm(d) x 200mm(h)
High pixel resolution of about 3 μm
Length Measurement Error:
EU X/Y (1D) in μm 20 °C ± 2 °C | 1,6 + L/200
EU XY (2D) in μm 20 °C ± 2 °C | 1,9 + L/150
EU XYZ (3D) in μm 20 °C ± 2 °C | 2,4 + L/150
Measuring volume 300mm(w) x 200mm(d) x 200mm(h)
High pixel resolution of about 3 μm
Length Measurement Error:
EU X/Y (1D) in μm 20 °C ± 2 °C | 1,6 + L/200
EU XY (2D) in μm 20 °C ± 2 °C | 1,9 + L/150
EU XYZ (3D) in μm 20 °C ± 2 °C | 2,4 + L/150
- Calibrated to MPE E(3D) as per ISO 10360
- Enables to install, remove or exchange accessories according to the needs and budget
- Digital camera system with ZEISS optics
- Professional and actionable reports with Zeiss PiWeb
- Intuitive and user-friendly software
- Features ZEISS renown CALYPSO software
Area of application
ZEISS O-DETECT is an optical measuring machine that offers intuitive operation, high-quality imaging and flexible lighting for precise measurements in an instant. The technology is suitable for a wide variety of components but excels with those that are best left untouched. Discover the new generation of optical metrology.
